19英寸1U上架工控机Q670芯工业计算机IPC-105JT-Q670
1、搭载 Intel® LGA1851 Gen 插槽处理器（原代号 Arrow Lake-S，最高 TDP 65W） 2、高性能内存：双 DDR5 CSO-DIMM，最高支持 96GB 3、双 2.5GbE 网络：提供高速网络连接 4、四显示输出支持：2 x HDMI®、2 x DP，支持 4K 显示 5、存储与扩展：2 x SATA、2 x M.2 M-key、1 x M.2 E-key、1 x M.2 B-key（支持 4G/5G）、1 x PCIe x16（Gen 5） 6、宽范围电源输入：DC-in 12V–36V，适用于工业应用 7、增强安全性：板载 TPM 2.0（可选）
2、高性能内存：双 DDR5 CSO-DIMM，最高支持 96GB
3、双 2.5GbE 网络：提供高速网络连接
4、四显示输出支持：2 x HDMI®、2 x DP，支持 4K 显示
5、存储与扩展：2 x SATA、2 x M.2 M-key、1 x M.2 E-key、1 x M.2 B-key（支持 4G/5G）、1 x PCIe x16（Gen 5）
6、宽范围电源输入：DC-in 12V–36V，适用于工业应用
7、增强安全性：板载 TPM 2.0（可选）
| SYSTEM | |
| MB FORM FACTOR | Rackmount |
| CPU | Intel® LGA1851 Socket, Processor Arrow Lake-S (MAX. TDP 65W) |
| CHIPSET | Intel® Q870 |
| MEMORY | 2 x DDR5 6400MT/s, Dual Channel CSO-DIMM, up to 96GB |
| BIOS | UEFI |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| SECURITY | TPM2.0 (dTPM, Optional) |
| RTC BATTERY | Lithium Battery |
| OS SUPPORT | Windows® 11 (64bit), Linux |
| POWER | |
| POWER REQUIREMENT | DC-in 12~36V |
| POWER ON MODE | AT / ATX (Default) Mode |
| DISPLAY | |
| GPU | Intel® Graphics |
| Type-C DP | 1 x Type-C DP1.4a (Max Resolution: 4096 x 2160@60Hz) |
| DP | 1 x DP1.4a (Max Resolution: 4096 x 2160@60Hz) |
| HDMI® | 2 x HDMI® 2.1 TMDS (Max Resolution: 4096 x 2160@60Hz) |
| MULTIPLE DISPLAY | Support 4 Displays |
| AUDIO | |
| CODEC | Realtek codec |
| AMPLIFIER | 3W |
| LAN | |
| ETHERNET |
1 x RJ45 for Intel® I226-V 2.5GbE 1 x RJ45 for Intel® I226-LM 2.5GbE |
| SYSTEM I/O | |

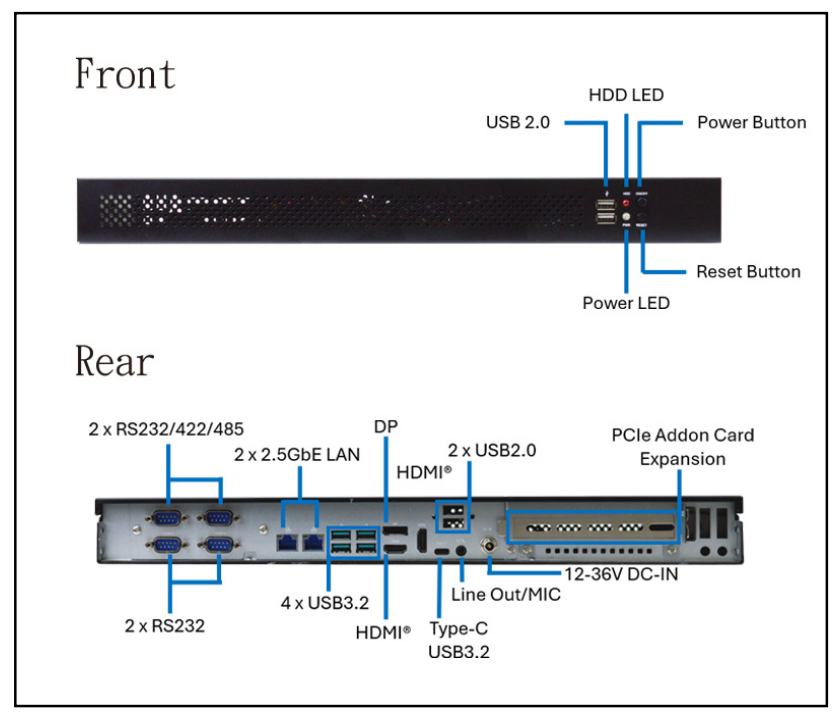

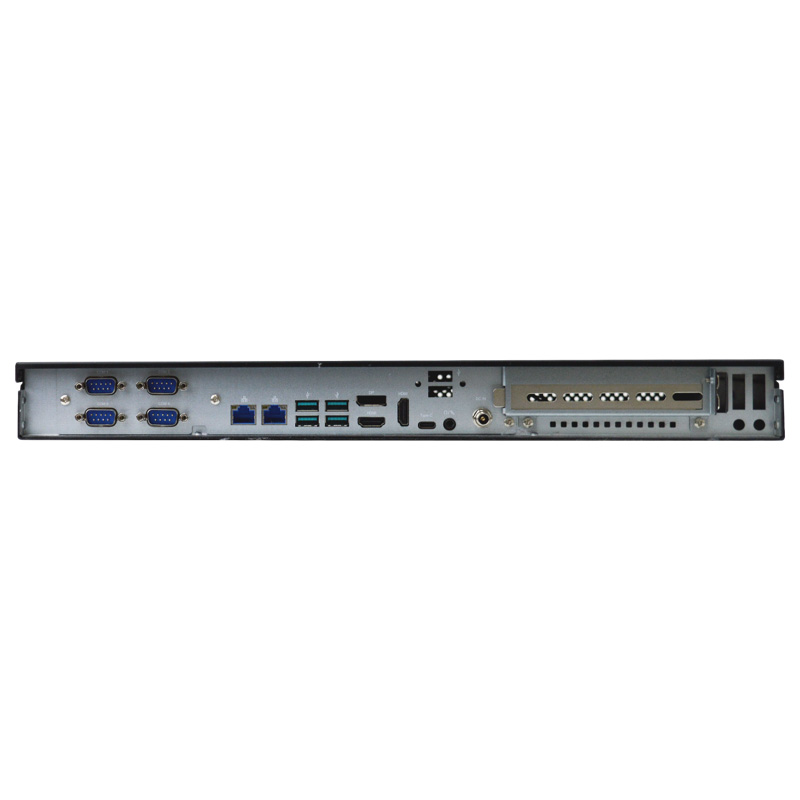

| REAR PANEL I/O |
2 x RJ45 4 x USB3.2 (Gen 2) 2 x USB 2.0 1 x USB 3.2 Gen 2 Type-C support DP1.4a display output 2 x HDMI® 1 x DP 1 x Audio ( Line out, MIC Combo) 1 x DC-in (Lockable) 2 x RS-232 2 x RS-232/422/485 |
| FRONT PANEL I/O |
1 x Power Button 1 x Reset Button 1 x Power LED 1 x HDD LED 2 x USB 2.0 |
| STORAGE | |
| SATA | 2 x 2.5" SATA 6Gb/s internal drive bay (only Support 2.5" HDD with a hight ≤ 10mm) |
| RAID | Intel® VMD RAID 0, 1 or SATA RAID 0, 1, 5 |
| EXPANSION | |
| PCIe | 1 x PCIe x16 |
| M.2 |
1 x M-Key 2242 (PCIe Gen 4 x4) support NVMe 1 x M-Key 2280 (PCIe Gen 4×4 w/ SATA interface) support NVMe 1 x E-Key 2230 (USB 2.0/PCIe Gen 4 x1) Support CNVio 1 x B-Key 3042/3052 (PCIe Gen 4x1/USB3.2/USB 2.0) Support 4G/5G Module |
| SIM | 1 x Nano SIM Card Slot |
| MECHANICAL | |
| DIMENSIONS (W x H x D) | 430.0 (W) x 252.0 (D) x 44.0 (H) mm |
| GROSS WEIGHT | 4.2kg |
| NET WEIGHT | 5.2kg |
| CONSTRUCTION | Metal Heatsink + Metal Chassis |
| ENVIRONMENT & CERTIFICATION | |
| SHOCK | 15G, 11ms duration |
| DROP | ISTA PROJECT 1A |
| VIBRATION | 1 Grms/ 5~ 500Hz/ Operation |
| OPERATING TEMPERATURE | 0°C ~ 50°C (32°F ~ 122°F) |
| STORAGE TEMPERATURE | -40°C ~ 85°C (-40°F ~ 185°F) |
| OPERATING HUMIDITY | 10 ~ 90% Relative Humidity, Non-condensing |
| STORAGE HUMIDITY | 10 ~ 90% @40°C, Non-condensing |
| CERTIFICATION |
CE/FCC Class A LVD |
| ESG DECLARATION | EU RoHS, China RoHS, WEEE, REACH, TSCA Declaration, PRO65 Declaration, CMRT Report |
