系统信息
|
|
处理器
|
LGA
1151针6th/7th Intel® Xeon®/Core™ i7/i5/i3系列处理器
|
|
芯片组
|
Intel®
C236
|
|
BIOS
|
AMI
|
|
SIO
|
IT8786E
|
|
内存
|
2根DDR4 2400/2133 MHz SO-DIMM插槽,最大支持64GB
|
|
I/O信息
|
|
串口
|
4个COM RS-232/422/485
|
|
USB
|
- 8个USB 3.0 (外置)
- 1个USB 2.0 (内置)
|
|
数字输入输出
|
16pin
GPIO
|
|
指示灯
|
电源指示灯、硬盘指示灯、无线网络指示灯, PoE网口指示灯
|
|
SIM卡槽
|
3个SIM Card Socket (外置)
|
|
扩展插槽
|
|
Mini
PCIe
|
3个全长Mini-PCIE插槽、支持PCIe/USB/External SIM
Card/mSATA
|
|
PCI/
PCIe
|
1个PCIe x16扩展插槽(最大支持160W功耗)
|
|
M.2
|
1
M.2 Socket (Key ID : M)
|
|
显示
|
|
显卡芯片
|
Intel®
HD Graphics P630/630/P530/530
|
|
接口
|
-
DVI-I : Up to 1920 x1200 @ 60 Hz
-
DVI-D : Up to 1920 x1200 @ 60Hz
-
DisplayPort : Up to 4096 x 2304 @ 60Hz
|
|
存储
|
|
SATA
|
2 SATA
III (6Gbps) support S/W RAID 0, 1
|
|
mSATA
|
3
SATA III (Mini PCIe Type, 6Gbps)
|
|
存储设备
|
- 1个CFast Socket, Push-in/Push-out Ejector
-
2 个前置2.5" SSD/HDD Tray
|
|
音频
|
|
Audio
Codec
|
Realtek
ALC892, 5.1 Channel HD Audio
|
|
Audio
Interface
|
1
Mic-in, 1 Line-out
|
|
网络
|
|
LAN
1
|
Intel®
I219LM GigE LAN supports iAMT 11.0
|
|
LAN
2
|
Intel®
I210 GigE LAN
|
|
可选网络
|
|
LAN
3
|
GigE IEEE
802.3at (25.5W/48V) PoE+ by Intel® I210, supporting LAN bypass mode
|
|
LAN
4
|
GigE IEEE
802.3at (25.5W/48V) PoE+ by Intel® I210, supporting LAN bypass mode
|
|
LAN
5
|
GigE IEEE
802.3at (25.5W/48V) PoE+ by Intel® I210, supporting LAN bypass mode
|
|
LAN
6
|
GigE IEEE
802.3at (25.5W/48V) PoE+ by Intel® I210, supporting LAN bypass mode
|
|
电源
|
|
Power
Input
|
6V
to 36V, DC-in
|
|
Power
Interface
|
3-pin
Terminal Block : V+, V-, Frame Ground
|
|
Ignition
Control
|
16
Mode (Internal)
|
|
Remote
Switch
|
3-pin
Terminal Block
|
|
Surge
Protection
|
Up
to 80V/1ms Transient Power
|
|
其他
|
|
安全管理
|
可选Infineon SLB9665 supports TPM 2.0, LPC Interface
|
|
看门狗
|
Reset
: 1 to 255 sec./min. per step
|
|
智能管理
|
Wake
on LAN, PXE supported
|
|
HW
Monitor
|
Monitoring
temperature, voltages. Auto throttling control when CPU overheats.
|
|
支持系统
|
|
OS
|
Windows
10, Windows 8.1, Windows 7, Linux
|
|
机械
|
|

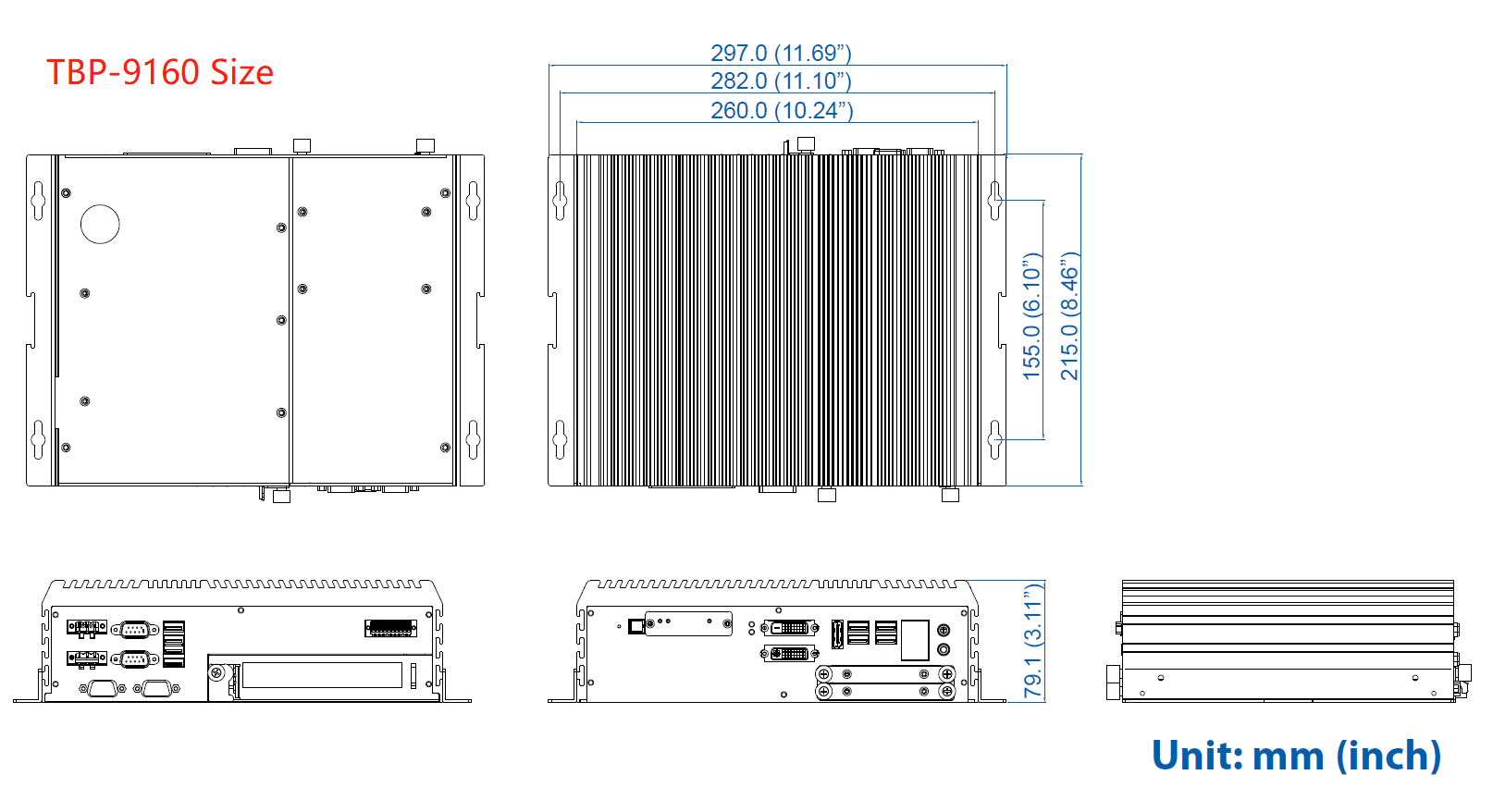

尺寸(W x L x H)
|
260mm
x 215mm x 79mm (10.2” x 8.5” x 3.1”)
|
|
重量
|
4.2 kg
(9.26 lb)
|
|
安装方式
|
- 壁挂式安装
- 导轨安装
-
2U安装支架 (可选)
|
|
|
|
|
环境
|
|
工作环境
|
35W
TDP CPU :
-
Core™ i7, i5, i3 : -40°C to 75°C (-40°F to 167°F)
-
Xeon® E3-1268L v5 : -40°C to 70°C (-40°F to 158°F)
65W
TDP CPU :
Core™ i7, i5, i3 : -40°C to 55°C (-40°F to 131°F)
80W
TDP CPU :
Xeon®
E3-1275 v6, E3-1275 v5, E3-1225 v5 : -40°C
to45°C (-40°F to 113°F)
|
|
存储温度
|
-40°C to 85°C (-40°F
to 185°F)
|
|
湿度
|
5%
to 95% Humidity, non-condensing
|
|
相对湿度
|
95%
at 75°C
|
|
冲击
|
-
IEC 60068-2-27
-
SSD : 50G @ wallmount, Half-sine, 11ms
|
|
振动
|
-
IEC 60068-2-64
-
SSD : 5Grms, 5Hz to 500Hz, 3 Axis
|
|
认证
|
E13, CE,
FCC, EN50155, EN50121-3-2
|
