系统信息
|
|
处理器
|
支持8th/9th系列8核Intel®
Xeon®/Core™ i7/i5/i3高性能处理器
|
|
芯片组
|
Intel® C246
|
|
BIOS
|
AMI
|
|
SIO
|
IT8786E
|
|
内存
|
2根DDR4 2666MHz SO-DIMM插槽,最大支持64GB内存
|
|

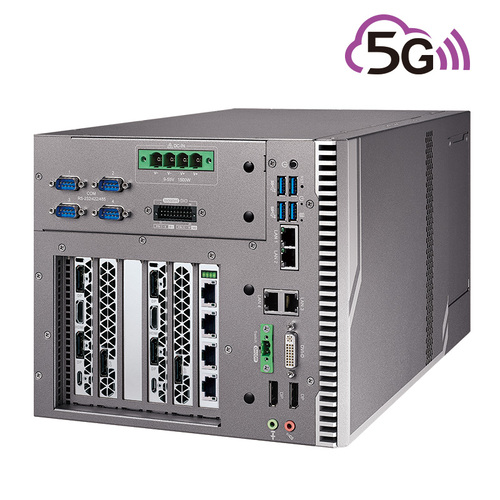

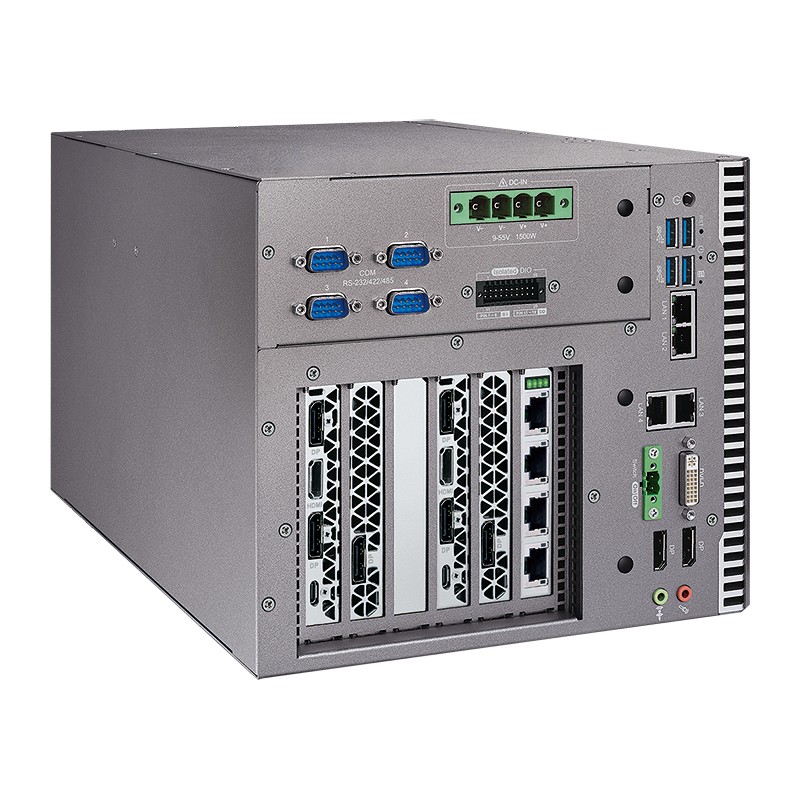

外置I/O
|
|
串口
|
4
COM RS-232/422/485 (ESD 8KV)
|
|
USB
|
4 USB
3.1
|
|
数字IO
|
16pin
DIO : 8 DI, 8 DO
|
|
指示灯
|
电源指示灯,硬盘工作灯
|
|
SIM卡槽
|
1个外置SIM卡槽
|
|
扩展插槽
|
|
迷你PCIe插槽
|
-1个全长插槽,支持PCIe/USB/External SIM Card
-1个全长插槽,支持PCIe/USB/mSATA
|
|
PCIe
|
4 PCIe
Slot:
-2 PCIe
x16 slot with PCIe x8 signal
-1 PCIe
x16 slot with PCIe x4 signal
-1 PCIe
x16 slot with PCIe x1 signal
|
|
SUMIT
A, B
|
2
SUMIT Slot (Optinal)
|
|
显示
|
|
显卡
|
-
Intel® UHD graphics 630
- Independent
Graphics 1:By request
- Independent
Graphics 2:By request
|
|
显示接口
|
Multiple independent
displays :
- 1
DVI-D : Up to 1920 x 1200 @60Hz
-
2 DisplayPort : Up to 4096 x 2304 @60Hz
-
By requested Graphics Card
|
|
存储
|
|
SATA
|
2
SATA III (6Gbps) support S/W RAID 0, 1
|
|
mSATA
|
1
SATA III (Mini PCIe type, 6Gbps)
|
|
存储空间
|
2
Internal 2.5" SSD/HDD Bracket
|
|
音频
|
|
音频芯片
|
Realtek
ALC892, 5.1 Channel HD Audio
|
|
音频接口
|
1
Mic-in, 1 Line-out
|
|
网络
|
|
LAN
1
|
Intel®
I219LM GigE LAN supports iAMT 12.0
|
|
LAN
2
|
Intel®
I210 GigE LAN
|
|
LAN
3
|
Intel®
I210 GigE LAN
|
|
LAN
4
|
Intel®
I210 GigE LAN
|
|
电源
|
|
电源输入
|
9V
to 55V DC-in
|
|
电源接口
|
4-pin
Terminal Block
|
|
远程控制
|
2-pin
Terminal Block
|
|
过载包含
|
Up
to 80V/1ms Transient Power
|
|
其他
|
|
TPM
|
Infineon
SLB9665, LPC interface
|
|
看门狗
|
Reset
: 1 to 255 sec./min. per step
|
|
智能管理
|
Wake
on LAN, PXE supported
|
|
温控管理
|
Monitoring
temperature, voltages. Auto throttling control when CPU overheats.
|
|
系统支持
|
|
OS
|
Windows
10, Linux
|
|
机械
|
|
尺寸(W x L x H)
|
242.7mm
x 208.9mm x 369.2mm (9.56" x 8.22" x 14.54")
|
|
重量
|
9.0
kg (19.8 lb)
|
|
安装
|
壁挂式安装、桌面安装
|
|
环境
|
|
工作温度
|
-25°C to 60°C (-6°F to
140°F) 插显卡工作温度
-40°C
to 75°C 不插显卡
|
|
存储温度
|
-40°C to 85°C (-40°F
to 185°F)
|
|
相对湿度
|
5%
to 95% Humidity, non-condensing
|
|
相对环境
|
95%
@ 60°C
|
|
冲击和振动
|
-
IEC 61373 : 2010
-
Railway Applications : Rolling Stock Equipment, Shock and Vibration Test
|
|
EMC
|
CE,
FCC, EN50155, EN50121-3-2
|
