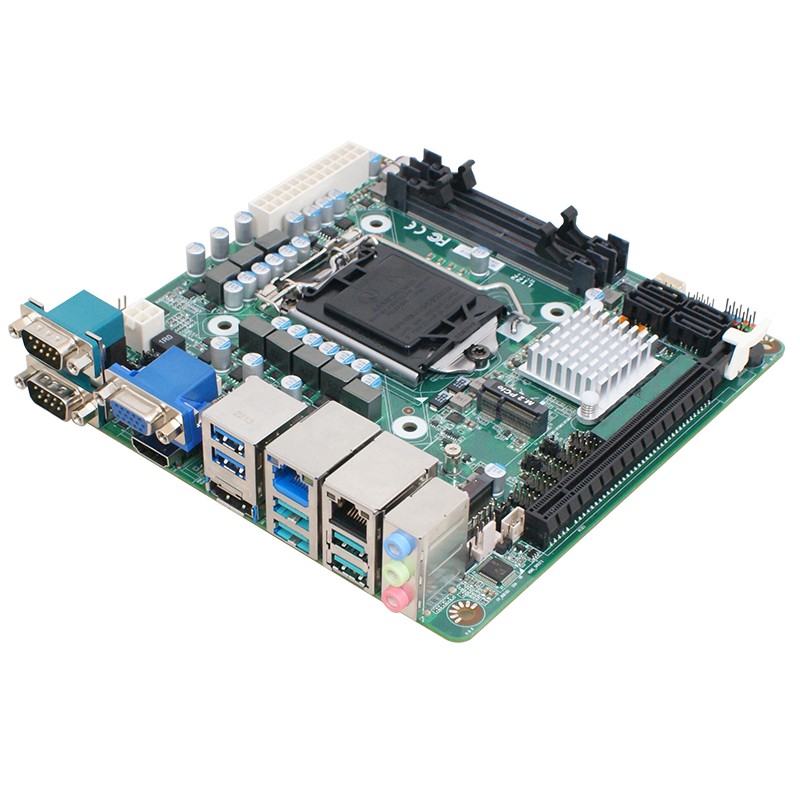

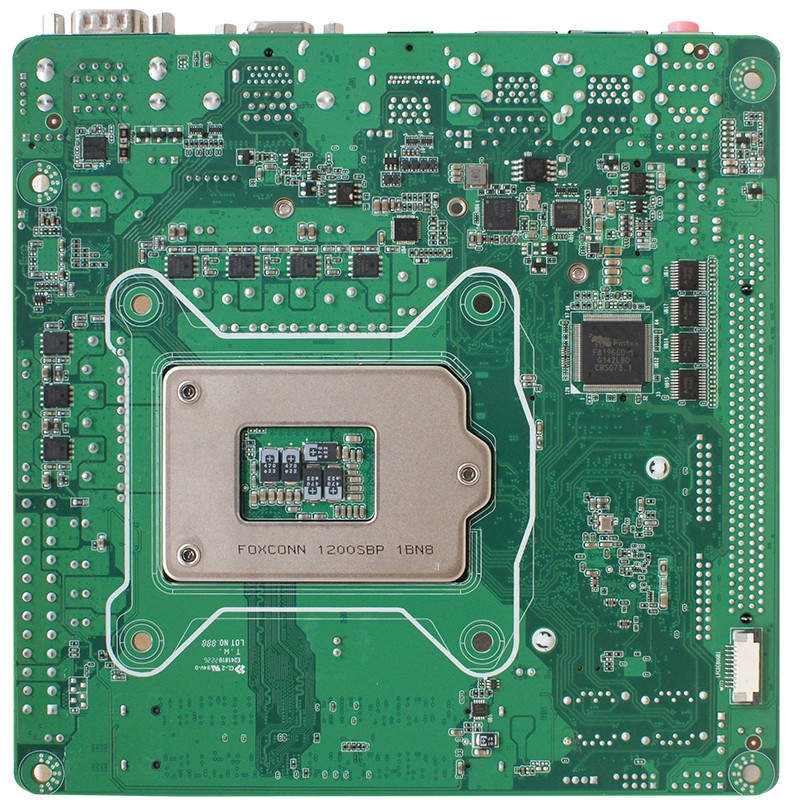

H420芯片组Mini-ITX嵌入式工控主板ITX-H420JT

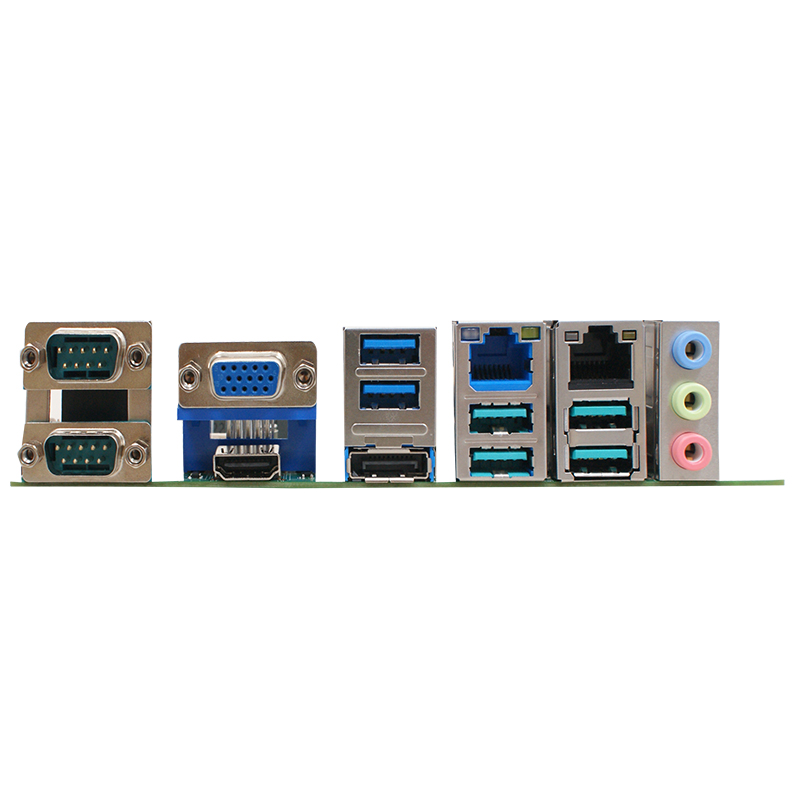

搭载Intel® LGA1200 第 10/11 代插槽处理器 （Comet Lake-S，TDP 65W） 灵活的显示选项：配备 1 x 5K DP、1 x 4K HDMI、1 x VGA 和 1 x LVDS/eDP 输出 双以太网口：包括 1 x 2.5GbE 和 1 x GbE，可实现高速、可靠的网络连接 扩充存储：配备4个SATA III和1个M.2 M-key用于NVMe SSD 附加扩充槽：提供1个M.2 E-key和1个PCIe x16用于附加卡 全面的I/O：包括6个USB 3.2、3个USB 2.0、1个GPIO和6个 COM 端口 电源支持：兼容24 + 4针ATX电源输入 增强的安全性：支持可选的板载 TPM 2.0
灵活的显示选项：配备 1 x 5K DP、1 x 4K HDMI、1 x VGA 和 1 x LVDS/eDP 输出
双以太网口：包括 1 x 2.5GbE 和 1 x GbE，可实现高速、可靠的网络连接
扩充存储：配备4个SATA III和1个M.2 M-key用于NVMe SSD
附加扩充槽：提供1个M.2 E-key和1个PCIe x16用于附加卡
全面的I/O：包括6个USB 3.2、3个USB 2.0、1个GPIO和6个 COM 端口
电源支持：兼容24 + 4针ATX电源输入
增强的安全性：支持可选的板载 TPM 2.0
| SYSTEM | |
| MB FORM FACTOR | Mini-ITX |
| CPU | Intel® LGA1200 10/11th Gen Socket Processor (Formerly Comet Lake-S, TDP 65W) |
| CHIPSET | Intel® H420E |
| MEMORY | 2 x DDR4 2933/2666MHz SO-DIMM DRAM, up to 64GB |
| BIOS | AMI 256Mb Flash ROM |
| WATCHDOG TIMER | 255 Levels |
| SECURITY | TPM2.0 (Optional) |
| DIMENSION (W X D) | 170.0 (W) x 170.0 (D) mm (6.7″ x 6.7″) |
| OS SUPPORT |
Windows® 11 (64bit) Windows® 10 (64bit) Linux |
| POWER | |
| POWER REQUIREMENT | ATX Power Supply |
| POWER ON MODE | AT / ATX |
| CONNECTOR | 24+4-pin ATX PWR |
| DISPLAY | |
| GPU | Intel® HD Graphics |
| LVDS | 1 x LVDS/eDP (Max Resolution : LVDS: 2560 x 1600@60Hz, eDP: 3840 x 2160@30Hz) |
| DP | 1 x DP1.4 (Max Resolution: 5120 x 3200@60Hz) |
| HDMI | 1 x HDMI 1.4 (Max Resolution: 4096 x 2160@30Hz) |
| VGA | 1 x VGA (Max Resolution: 1920 x 1080 @60Hz) |
| MULTIPLE DISPLAY | Support 2 Displays |
| AUDIO | |
| CODEC | Realtek Audio Codec |
| Line-in | 1 x Audio Jack for Line-In |
| Line-out | 1 x Audio Jack for Line-Out |
| MIC-in | 1 x Audio Jack for MIC-In |
| LAN | |
| ETHERNET |
1 x RJ45 for Intel® I226-V 2.5GbE 1 x RJ45 for Intel® I219-LM GbE |
| USB PORT | |
| USB |
6 x USB 3.2 Gen 1x1 (5Gbps, Formerly USB 3.1 Gen 1) Internal Header for 3 x USB 2.0 |
| SERIAL PORT | |
| COM |
2 x DB-9 for RS-232/422/485 with 5V/12V header Internal Header for 4 x RS-232 with 5V/12V header |
| INTERNAL I/O | |
| GPIO | 8-Bit (5V) |
| SMBUS | Yes |
| I2C | Yes |
| FAN |
1 x CPU Fan Header (Smart Fan) 1 x System Fan Header |
| ADDITIONAL |
1 x Chassis Intrusion 1 x PS/2 1 x Inverter (PH2.0) 1 x Light Up/Down (PH2.0) 1 x AT Mode Selection |
| EXPANSION | |
| M.2 |
1 x M-Key 2242/2280 (PCIe x4) support NVMe SSD 1 x E-Key 2230 (USB 2.0/PCIe x1) for WIFI/BT Module |
| PCIe | 1 x PCIe x16 |
| ENVIRONMENT & CERTIFICATION | |
| SHOCK | 15G, 11ms duration |
| VIBRATION | 1 Grms/ 5~ 500Hz/ Operation |
| OPERATING TEMPERATURE | 0°C ~ 60°C (32°F ~ 140°F) |
| STORAGE TEMPERATURE | -20°C ~ 70°C (-4°F ~ 158°F) |
| OPERATING HUMIDITY | 10 ~ 90% Relative Humidity, Non-condensing |
| CERTIFICATION | CE/FCC Class A |
| ESG DECLARATION |
EU RoHS China RoHS REACH |
