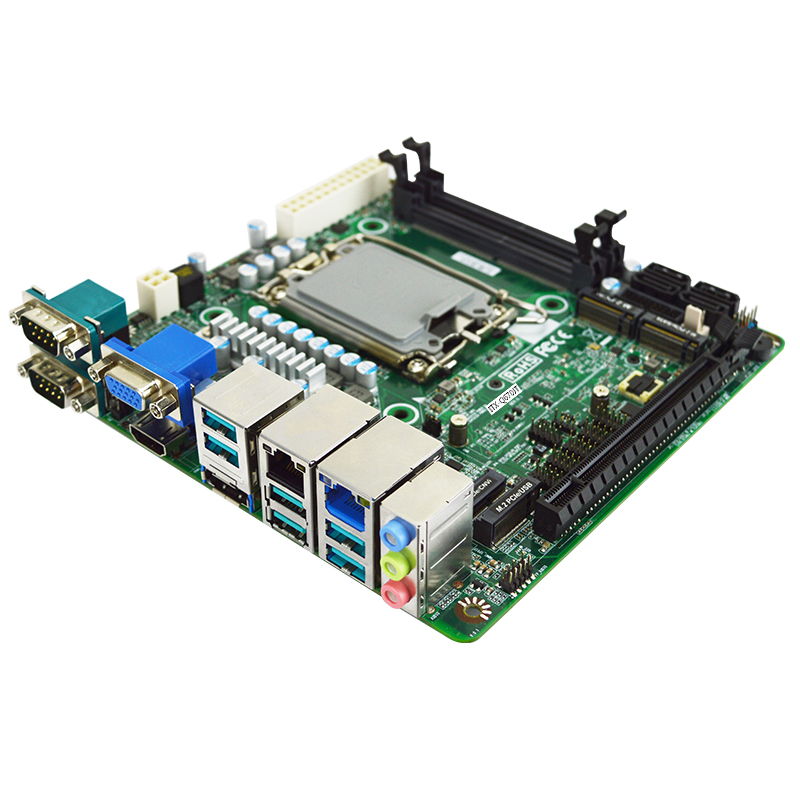

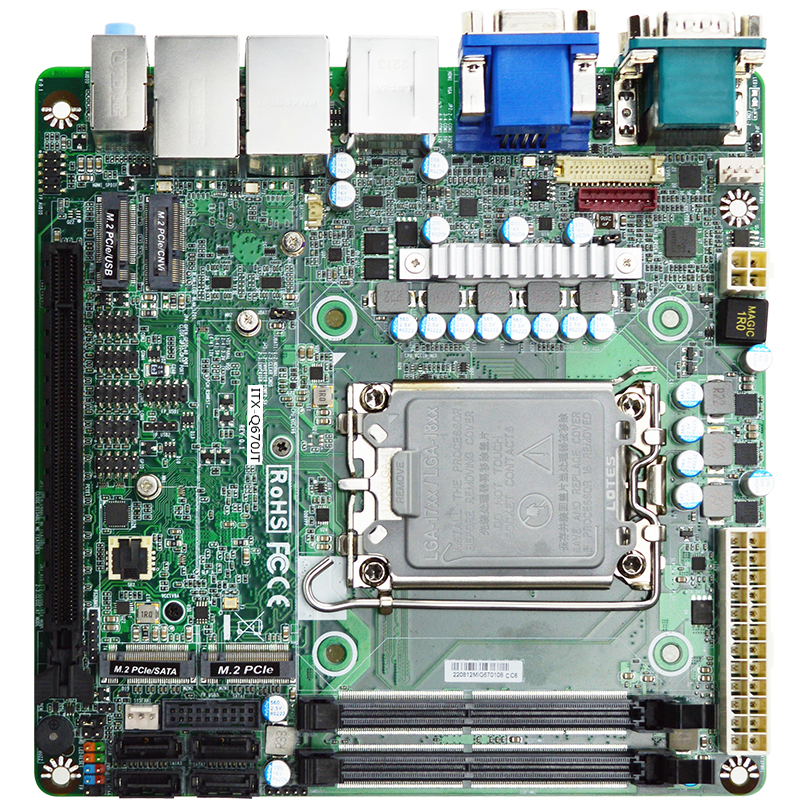

Q670芯片组Mini-ITX嵌入式工控机主板ITX-Q670JT
ITX-Q670JT-00A1E 嵌入式Mini-ITX工控主板
1、Intel® 12th/13th LGA1700 Socket 处理器 (最高 65W TDP)
2、Intel® Q670E 芯片
3、2* DDR4 3200MHz SO-DIMM 最高支持 64GB
4、1* 10/100/1000 Base-TX & 1* 10/100/1000/ 2500 Base-TX 网口
5、1* HDMI, 1* DP, 1* VGA, 1* LVDS/eDP
6、6* COM (COM1支持 RS232/422/485)
7、6* USB3.2 Gen.2, 2* USB3.2 Gen.1, 3* USB2.0
8、1* PCIe Gen.4 x16 槽, 1* M.2 M-Key (2280, PCIe Gen.3 x4 界面)
支持 NVMe, 1* M.2 M-Key (2242, PCIe Gen.4 x4/SATA 界面)
支持 NVMe, 1* M.2 E-Key (2230, USB2.0/PCIe Gen.3 x1 界面)
支持 CNVi, 1* M.2 B-key (3042, PCIe Gen.3 x1/USB3.2 Gen.2/
USB2.0 界面) 支持 4G/5G 模块
9、4* SATAIII (6Gb/s) 支持 RAID 0,1,5,10
10、ITX-Q670JT-00A2E 支持板载 TPM2.0
ITX-Q670JT-00A1E 嵌入式Mini-ITX工控主板
1、Intel® 12th/13th LGA1700 Socket 处理器 (最高 65W TDP)
2、Intel® Q670E 芯片
3、2* DDR4 3200MHz SO-DIMM 最高支持 64GB
4、1* 10/100/1000 Base-TX & 1* 10/100/1000/ 2500 Base-TX 网口
5、1* HDMI, 1* DP, 1* VGA, 1* LVDS/eDP
6、6* COM (COM1支持 RS232/422/485)
7、6* USB3.2 Gen.2, 2* USB3.2 Gen.1, 3* USB2.0
8、1* PCIe Gen.4 x16 槽, 1* M.2 M-Key (2280, PCIe Gen.3 x4 界面)
支持 NVMe, 1* M.2 M-Key (2242, PCIe Gen.4 x4/SATA 界面)
支持 NVMe, 1* M.2 E-Key (2230, USB2.0/PCIe Gen.3 x1 界面)
支持 CNVi, 1* M.2 B-key (3042, PCIe Gen.3 x1/USB3.2 Gen.2/
USB2.0 界面) 支持 4G/5G 模块
9、4* SATAIII (6Gb/s) 支持 RAID 0,1,5,10
10、ITX-Q670JT-00A2E 支持板载 TPM2.0
|
Model
|
– ITX-Q670JT-00A1E
– ITX-Q670JT-00A2E (onboard TPM2.0)
|
|
Form Factor
|
– Mini-ITX
(170 * 170mm)
|
|
Processor
System
|
– Intel®
12th/13th LGA1700 Socket Core i7/i5/i3/Pentium/Celeron Processor (Max. 65W
TDP)
– Intel® Q670E Express Chipset
– AMI 256Mb Flash ROM BIOS
|
|
Memory
|
– 2* Dual CH
non-ECC DDR4 3200MHz SDRAM SO-DIMM up to 64GB
|
|
Storage
|
– 4* SATAIII
(6 Gb/s) support RAID 0, 1, 5, 10
– 1* M.2 M-Key (2280, PCIe Gen.3 x4 interface) support NVMe
– 1* M.2 M-Key (2242, PCIe Gen.4 x4/SATA interface) support NVMe
|
|
Expansion
|
– 1* M.2 E-Key
(2230, USB2.0/PCIe Gen.3 x1 interface) support CNVi
– 1* M.2 B-key (3042, PCIe Gen.3 x1/USB3.2 Gen.2/USB2.0 interface)
– 1* PCIe Gen.4 x16
|
|
Ethernet
|
– 1* Intel®
i219LM GbE
– 1* Intel® i225V 2.5GbE
|
|
Graphics
|
– Intel® HD
Graphics, shared memory
– 1* DP 1.4a (Max Resolution: 4096×2304@60Hz)
– 1* HDMI 2.0b (Max Resolution: 4096×2160@60Hz)
– 1* LVDS/eDP (Max Resolution: 1920×1200@60Hz)
– 1* VGA (Max Resolution: 1920×1080@60Hz)
– Support Quad Displays
|
|
Audio
|
– HD audio:
Realtek ALC888S
|
|
Watchdog Timer
|
– From Super
I/O to drag RESETCON#
– 256 segments (10sec ~ 255min)
|
|

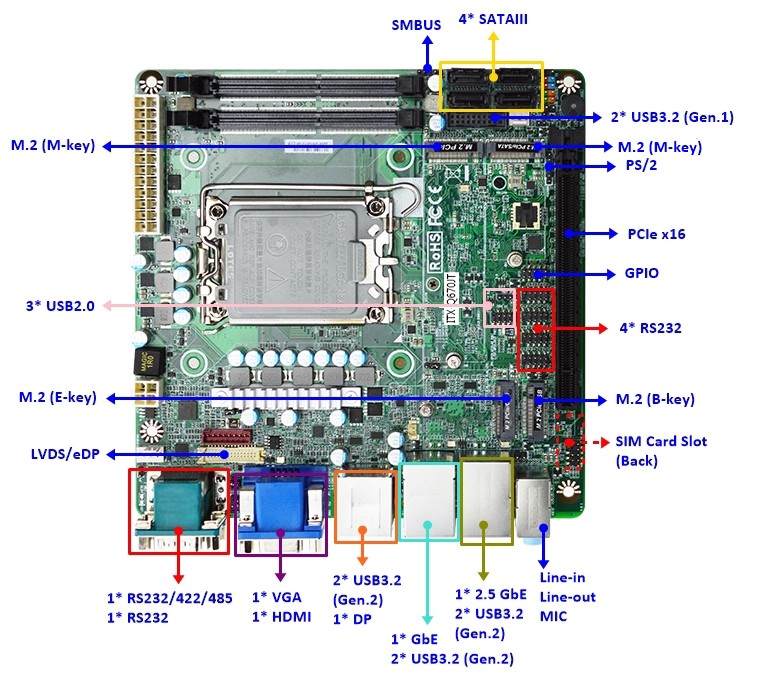

Internal I/O
|
– 2* USB3.2
(Gen.1)
– 3* USB2.0
– 1* LVDS/eDP
– 4* SATAIII
– 4* COM (RS232)
– 1* M.2 M-Key (2280, PCIe Gen.3 x4 interface) support NVMe
– 1* M.2 M-Key (2242, PCIe Gen.4 x4/SATA interface) support NVMe
– 1* M.2 E-Key (2230, USB2.0/PCIe Gen.3 x1 interface) support CNVi
– 1* M.2 B-key (3042, PCIe Gen.3 x1/USB3.2 Gen.2/USB2.0 interface) support
4G/5G Module
– 1* SIM slot
– 1* PS/2
– 1* GPIO (8 bit)
– 1* Chassis intrusion
– 1* Audio Header
– 1* SMBUS
– 1* AT mode
– Support onboard TPM2.0 (ITX-Q670JT-00A2E)
|
|

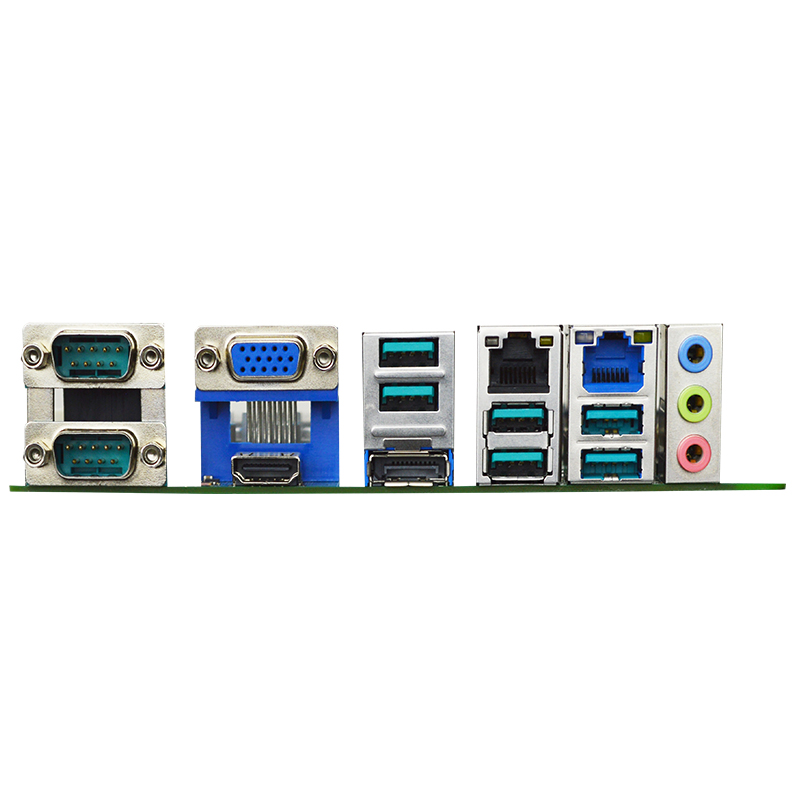

External I/O
|
– 1* HDMI
– 1* DP
– 1* VGA
– 2* RJ45 Ethernet
– 6* USB3.2 (Gen.2)
– 1* COM (RS232/422/485)
– 1* COM (RS232)
– Line-in, Line-out, MIC
|
|
Power
|
ATX PWR (4+24
pin), AT/ATX Supported
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
|
|
Compliance
|
– CE, FCC,
LVD, RoHS, REACH
|
|
Temperature
|
– Operating
Temperature: -10 ~ 50° C
– Storage Temperature: -20 ~ 85° C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)
|
|
OS Support
|
– Windows 10,
Windows 11, Linux
|
