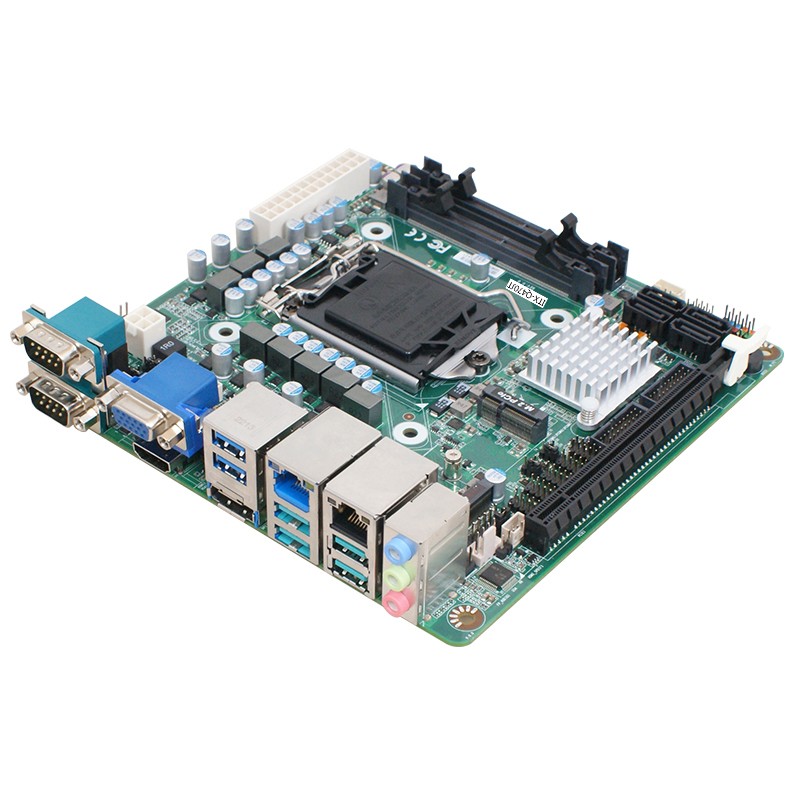

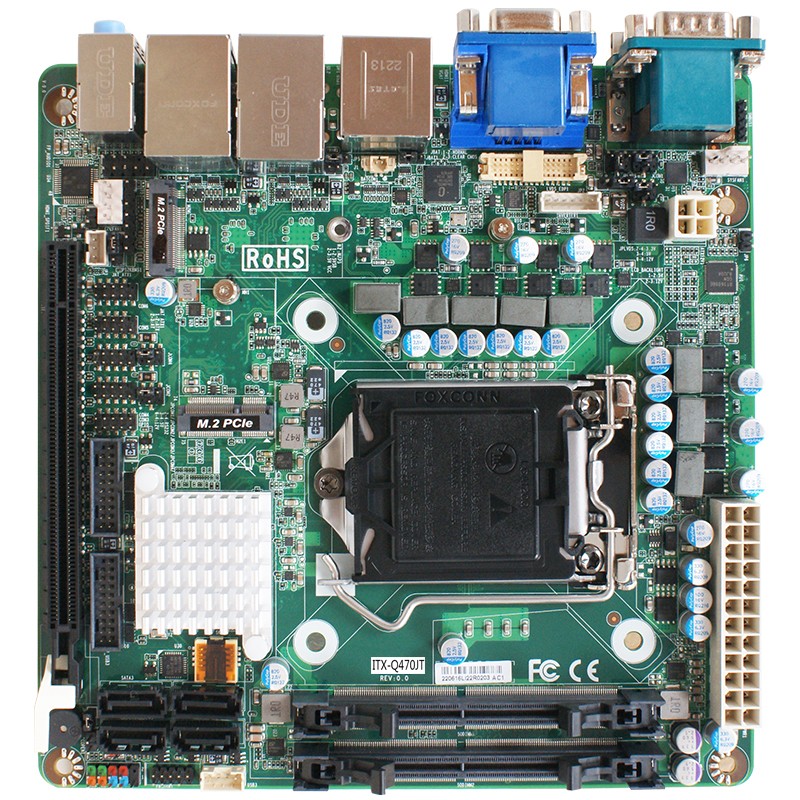

Q470芯片组Mini-ITX嵌入式工控主板ITX-Q470JT
ITX-Q470JT-00A1E ITX工控主板
1. Intel® LGA1200 槽支持 10/11代处理器 (最高65W)
2. Intel® Comet Lake-S Q470E
3. 2* DDR4 3200/2933MHz 最高支持 64GB
4. 1* Intel® i225-V 2.5 GbE, 1* Intel® i219-LM GbE
5. 1* M.2 M-Key (PCI-Ex4), 1* M.2 E-Key (CNVi/PCI-Ex1)
6. 4* SATA III (6Gb/s, 支持RAID 0/1/5/10),
1* PCI-E x16 槽
7. 1* VGA, 1* HDMI, 1* DP, 1* LVDS/eDP 输出
8. 2* RS232/422/485, 4* RS232, 4* USB3.2 (Gen1),
6* USB3.0, 3* USB2.0
9. ITX-Q470JT2 支持板载 TPM 2.0 (可选)
10. 24 + 8 Pin ATX 电源
11. Mini-ITX 类型 (170x170mm)
ITX-Q470JT-00A1E ITX工控主板
1. Intel® LGA1200 槽支持 10/11代处理器 (最高65W)
2. Intel® Comet Lake-S Q470E
3. 2* DDR4 3200/2933MHz 最高支持 64GB
4. 1* Intel® i225-V 2.5 GbE, 1* Intel® i219-LM GbE
5. 1* M.2 M-Key (PCI-Ex4), 1* M.2 E-Key (CNVi/PCI-Ex1)
6. 4* SATA III (6Gb/s, 支持RAID 0/1/5/10),
1* PCI-E x16 槽
7. 1* VGA, 1* HDMI, 1* DP, 1* LVDS/eDP 输出
8. 2* RS232/422/485, 4* RS232, 4* USB3.2 (Gen1),
6* USB3.0, 3* USB2.0
9. ITX-Q470JT2 支持板载 TPM 2.0 (可选)
10. 24 + 8 Pin ATX 电源
11. Mini-ITX 类型 (170x170mm)
|
Model
|
– ITX-Q470JT
– ITX-Q470JT2 (Onboard TPM2.0)
|
|
Form Factor
|
– Mini-ITX (170 * 170mm)
|
|
Processor System
|
– Intel® LGA1200 Socket supports 10/11th Gen Core
Processor, Max. 65W
– Intel® Comet Lake-S Q470E Chipset
– AMI 256M Flash ROM
|
|
Memory
|
– 2* DDR4 3200/2933MHz SO-DIMM up to 64GB
|
|
Storage
|
– 1* M.2 M-key (2242/2280, PCI-Ex4 interface, support
NVMe SSD)
– 4* SATAIII (6.0Gb/s, Support RAID 0/1/5/10)
|
|
Expansion
|
– 1* M.2 E-key (2230, CNVi/PCI-Ex1/USB2.0, support
WIFI/BT)
– 1* PCI-E x16 slot
|
|
Ethernet
|
– 1* Intel® i225-V 2.5GbE
– 1* Intel® i219-LM GbE
|
|
Graphics
|
– Intel® HD Graphics, shared Memory
– 1* VGA (Max Resolution : 2560×1600@60Hz)
– 1* HDMI 1.4 (Max Resolution : 4096×2160@30Hz)
– 1* DP1.4 (Max Resolution : 5120×3200@60Hz)
– 1* LVDS/eDP (Max Resolution : LVDS: 2560×1600@60Hz, eDP: 3840×2160@30Hz)
– Support Triple Displays
|
|
Audio
|
– HD audio: Realtek ALC888S
|
|
Watchdog Timer
|
– From Super I/O to drag RESETCON#
– 256 segments (10sec ~ 255min)
|
|
Internal I/O
|
– 4* USB3.0
– 3* USB2.0
– 4* RS232 (COM3/4 Support 5/12V TTL)
– 4* SATAIII (6.0Gb/s)
– 1* LVDS/eDP (Choose one from two)
– 1* Inverter (PH2.0)
– 1* Light Up/Down (PH2.0)
– 1* M.2 M-key (2242/2280, PCI-Ex4 interface)
– 1* M.2 E-key (2230, CNVi/PCI-Ex1/USB2.0 interface)
– 1* PCI-Ex16 slot (by CPU)
– 1* GPIO (8 bit,5V)
– 1* CPU FAN (W/ Smart FAN)
– 1* PS/2 (PH2.54)
– 1* System FAN (W/O Smart FAN)
– 1* Chassis intrusion
– 1* SMBUS/ I2C
– 1* AT mode
|
|

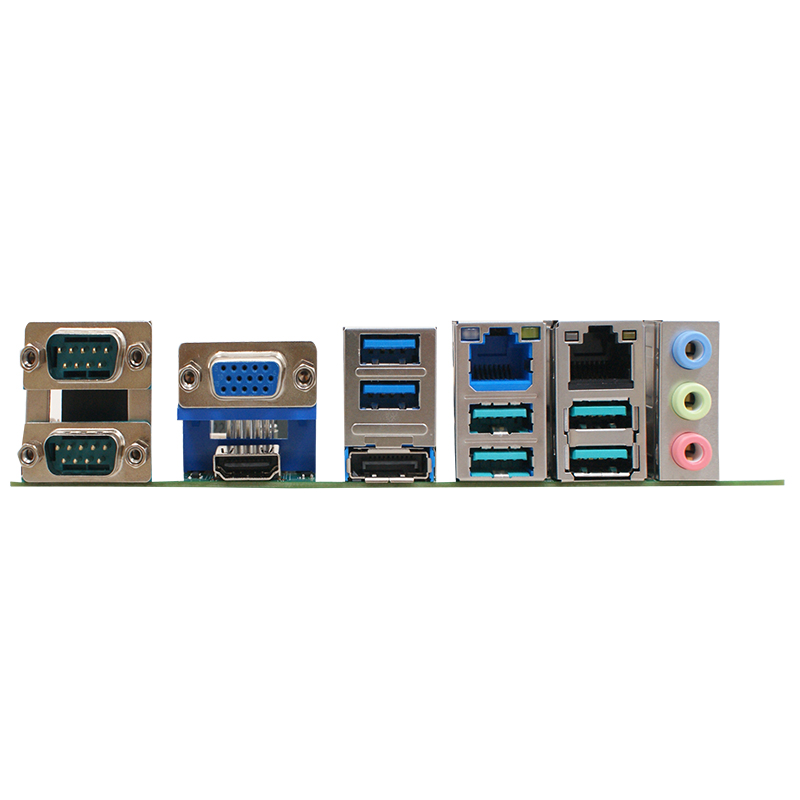

External I/O
|
– 2* RS232/422/485 (Support 5V/12V TTL)
– 4* USB3.2 (Gen1)
– 2* USB3.0
– 1* VGA
– 1* HDMI1.4
– 1* DP1.2
– 2* RJ45
– Line-in, Line-out, MIC
|
|
Power
|
24 + 8 Pin ATX Power, AT/ATX Supported
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
|
|
Compliance
|
– CE, FCC, RoHS, REACH compatible
|
|
Temperature
|
– Operating Temperature: 0 ~ 60° C
– Storage Temperature: -20 ~ 70° C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)
|
|
OS Support
|
– Windows 10, Windows 11, Linux
|
|
Warranty
|
– 2 Year limited warranty
|
