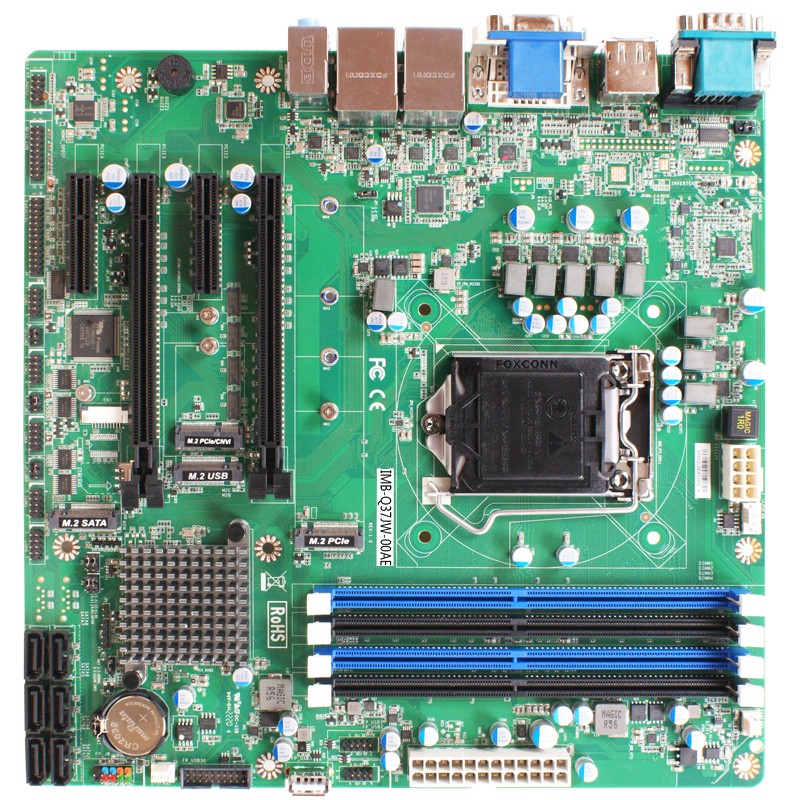

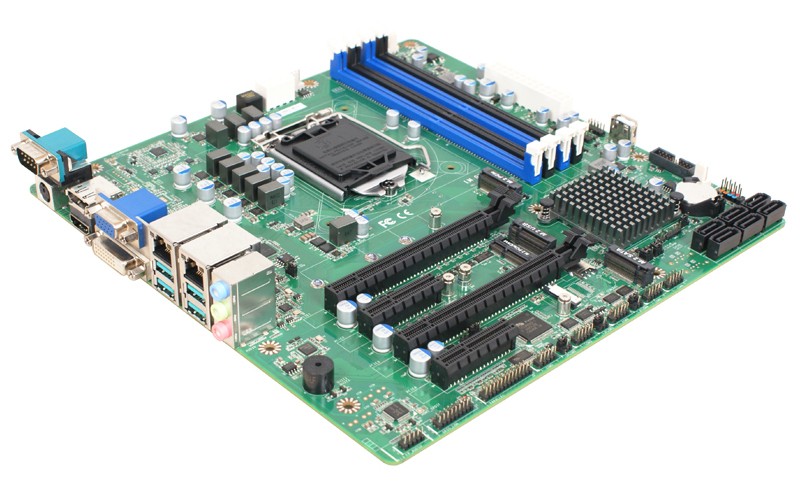

Q370芯片组嵌入式Micro-ATX工控主板IMB-Q370JT

1. 英特尔® LGA1151 Socket 支持第 9th/8th 代 Core 处理器 (最高支持95W) 2. 英特尔® Coffee Lake-S Q370 芯片 3. 4* DDR4 2666/2400/2133MHz 最高支持 128GB 4. 1* Intel® i219-LM 千兆网口 + 1* Intel® i211AT 千兆网口 5. 6* SATA III (6Gb/s) & 2* M.2 (M key), 1* M.2 (E key) 支持 CNVi, 2* PCI-E x16, 2* PCI-E x4 6. VGA/DVI-D/HDMI/DP/LVDS 输出 7. 2* RS232/422/485 (COM1/2), 4*RS232 8. 5* USB3.1, 6* USB2.0 9. ATX 电源输入 10. Micro ATX 类型 (244 x 244 mm)
Q370芯片组嵌入式Micro-ATX工控主板IMB-Q370JT
1. 英特尔® LGA1151 Socket 支持第 9th/8th 代 Core 处理器 (最高支持95W)
2. 英特尔® Coffee Lake-S Q370 芯片
3. 4* DDR4 2666/2400/2133MHz 最高支持 128GB
4. 1* Intel® i219-LM 千兆网口 + 1* Intel® i211AT 千兆网口
5. 6* SATA III (6Gb/s) & 2* M.2 (M key), 1* M.2 (E key) 支持 CNVi, 2* PCI-E x16, 2* PCI-E x4
6. VGA/DVI-D/HDMI/DP/LVDS 输出
7. 2* RS232/422/485 (COM1/2), 4*RS232
8. 5* USB3.1, 6* USB2.0
9. ATX 电源输入
10. Micro ATX 类型 (244 x 244 mm)
服务热线：15821020714

Form Factor

Form Factor

– Micro ATX (244 x 244 mm)

Processor System

处理器

– Intel® LGA1151 Socket supports 9th/8th Gen. Core Processor (Max 95W)
– Intel Q370 chipset
– AMI 128Mb Flash ROM BIOS

Memory

内存插槽

– 4* Long DIMM DDR4 2666/2400/2133 MHz DRAM up to 128GB

Expansion Slot

扩展槽

– 2* M.2 (M key): 1* 2242/2280/22110 (support NVMe), 1* 2242 (SATA interface, co-lay SATA6)
– 1* M.2 (B key, 3042/3052) support 3G/4G/5G Module
– 1* M.2 (E key, 2230) support CNVi
– 6* SATAIII (SATA6 co-lay M.2 2242, support RAID 0/1/5/10)
– 2* PCI-E x16
– 2* PCI-E x4
– 1* SIM card holder (Nano)

Graphics

显示

– Intel® HD Graphics, shared memory
– 1* VGA (Max Resolution: 1920×1080@60Hz, Co-lay LVDS)
– 1* LVDS (Max Resolution: 1920×1200@60Hz, Co-lay VGA, Option)
– 1* HDMI 1.4 (Max Resolution: 4096×2304@24Hz)
– 1* DVI-D (Max Resolution: 4096×2304@24Hz)
– 1* DP (Max Resolution: 4096×2304@60Hz)
– 支持多显

Ethernet

网口

– 1* Intel® i219-LM GbE
– 1* Intel® i211AT GbE

Audio

音频

– HD audio: Realtek ALC662VD

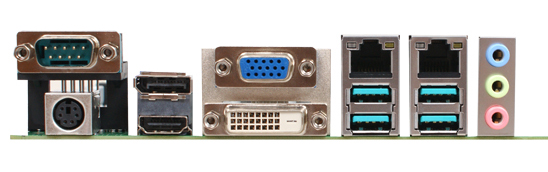

I/O Port

挡板IO接口

– 1* VGA
– 1* DVI-D
– 1* HDMI
– 1* DP
– 2* RJ45
– 4* USB3.1
– Line-in, Line-out, MIC
– 1* RS232/422/485 (support 5/12V TTL)
– 1* PS/2

内置IO接口插针

– 1* USB 3.1 (Gen.1)
– 5* USB 2.0
– 1* USB 2.0 (Erect)
– 1* LVDS (Co-lay VGA)
– 5* COM (COM2: RS232/422/485, COM3/4/5/6: RS232, COM2/3/4: Support 5/12V TTL)
– 6* SATAIII (6.0Gb/s, SATA6 co-lay M.2 M key)
– 4* M.2 (2* M key, 1* E key, 1* B key)
– 1* Parallel
– 1* GPIO (16 bit)
– 1* Chassis intrusion
– 1* Audio Header
– 1* SMBUS/I2C
– 1* AT mode
– 1* TPM2.0 (Option)

SATA

SATA

– 6* SATAIII (6.0Gb/s, support RAID 0/1/5/10)

Watchdog Timer

看门狗

– From Super I/O to drag RESETCON#
– 256 segments (10sec ~ 255min)

Power

供电

ATX PWR (8+24 pin)
– AT : Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready

Compliance

Certifications

– CE, FCC, RoHS, REACH

Environment

Temperature

– Operating: 0°C ~ 60°C

– Storage: -20°C ~ 85°C

– Humidity: 10% ~ 90% RH @40°C (non-condensing)

Warranty

Warranty

– 2 Years Limited Warranty
