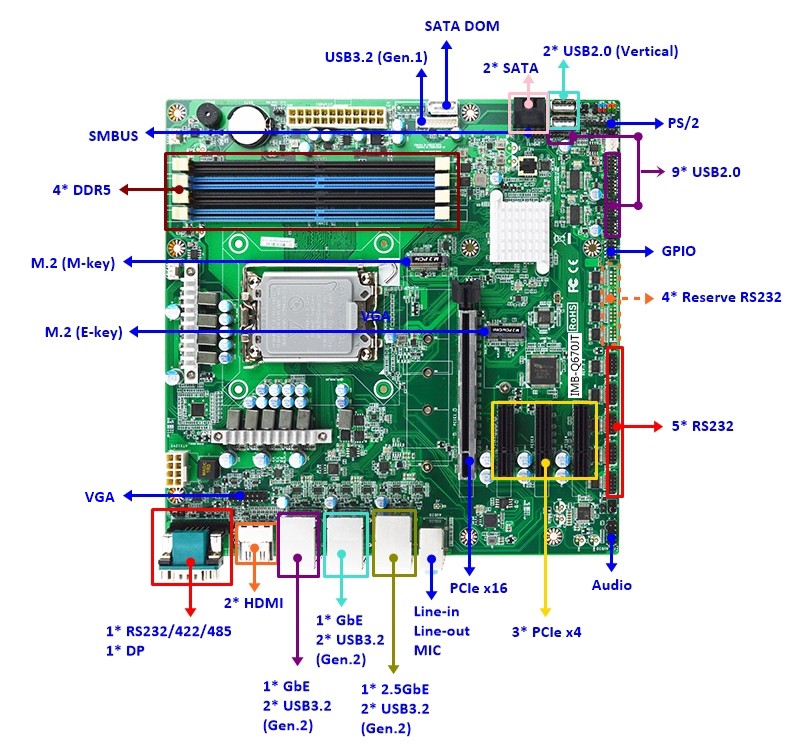

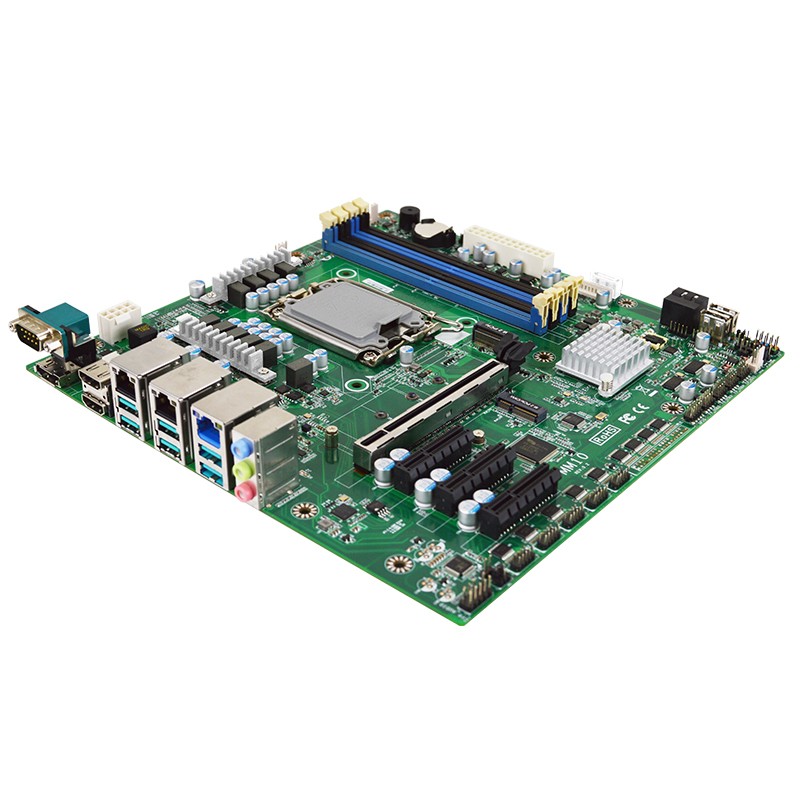

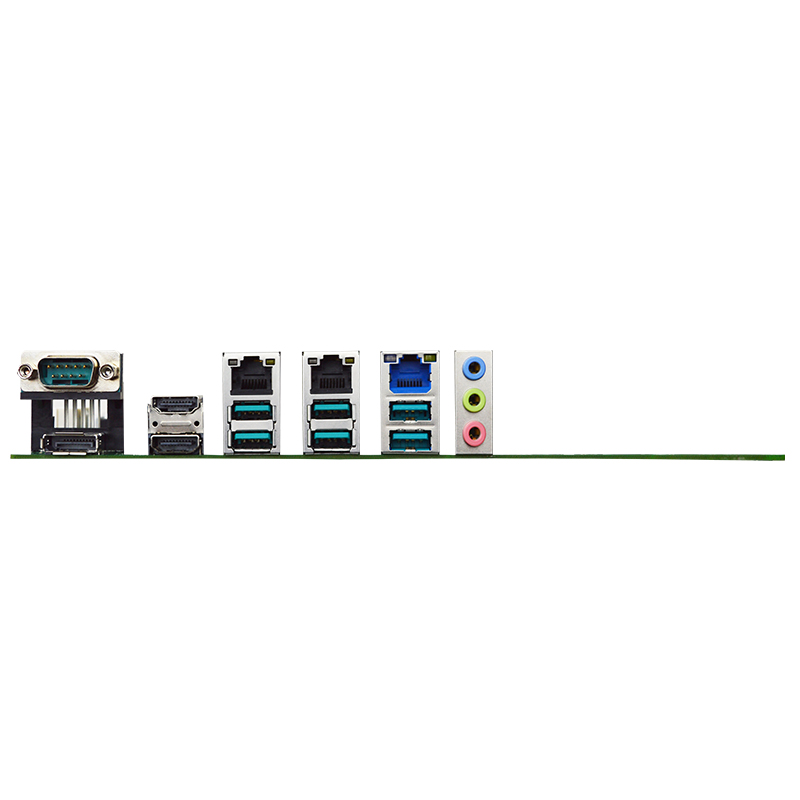

Q670芯片组嵌入式Micro-ATX工控主板IMB-Q670JT
1. 英特尔® 13代/12代 LGA1700 Socket 处理器 (240A 下最高支持 125W TDPs) 2. 4* DDR5 5600MHz/4800MHz UDIMM 最高支持 128GB 3. 2* GbE, 1* 2.5GbE 4. 2* HDMI, 1* DP, 1* VGA 5. 6* COM (COM1 支持 RS232/422/485), 6* USB3.2 Gen.2, 1* USB3.2 Gen.1, 11* USB2.0 6. 1* PCIe Gen.5×16 槽, 3* PCIex4 槽 ( 2 x Gen.3, 1 x Gen.4), 1* M.2 M-Key 2242/2260/2280/22110 (SATA/PCIex4 介面) 支持 NVMe, 1* M.2 E-Key (2230, USB2.0/ PCIex1 介面) 支持 CNVio 7. 3* SATAIII (6Gb/s) 支持 RAID 0, 1, 5, 10 (通过使用额外的 M.2 M-Key 和 SATA 接口支持 RAID 10；SATA2 支持 SATA DOM)
2. 4* DDR5 5600MHz/4800MHz UDIMM 最高支持 128GB
3. 2* GbE, 1* 2.5GbE
4. 2* HDMI, 1* DP, 1* VGA
5. 6* COM (COM1 支持 RS232/422/485), 6* USB3.2 Gen.2, 1* USB3.2 Gen.1, 11* USB2.0
6. 1* PCIe Gen.5×16 槽, 3* PCIex4 槽 ( 2 x Gen.3, 1 x Gen.4), 1* M.2 M-Key 2242/2260/2280/22110 (SATA/PCIex4 介面) 支持 NVMe, 1* M.2 E-Key (2230, USB2.0/ PCIex1 介面) 支持 CNVio
7. 3* SATAIII (6Gb/s) 支持 RAID 0, 1, 5, 10 (通过使用额外的 M.2 M-Key 和 SATA 接口支持 RAID 10；SATA2 支持 SATA DOM)
| SYSTEM | |
| 版型 | Micro-ATX |
| 处理器 |
Intel® LGA1700 12/13/14th Gen Socket Processor (Formerly Alder Lake-S, TDP 125W) Intel® LGA1700 Intel® Core™ Processors (Series 2) Socket Processor (Formerly Bartlett Lake, TDP 125W) |
| 芯片组 | Intel® Q670E |
| 内存 | 4 x DDR5 4800/4000MT/s Dual Channel U-DIMM, up to 192GB |
| BIOS | AMI 256Mb Flash ROM |
| 看门狗 | 255 Levels |
| SECURITY | TPM2.0 (Optional) |
| 尺寸 (W X D) | 244.0 (W) x 244.0 (D) mm (9.6" x 9.6") |
| 支持系统 | Windows® 11 (64bit), Windows® 10 (64bit), Windows® 10 (32bit), Linux |
| POWER | |
| 电源 | ATX Power Supply |
| 供电模式 | AT / ATX |
| CONNECTOR | 24+8-pin ATX PWR |
| DISPLAY | |
| GPU | Intel® UHD Graphics |
| DP | 1 x DP1.4a (Max Resolution: 4096 x 2304@60Hz) |
| HDMI® | 2 x HDMI® 2.0b (Max Resolution: 4096 x 2160@60Hz) |
| VGA | 1 x VGA (Max Resolution: 1920 x 1080 @60Hz) |
| MULTIPLE DISPLAY | Support 4 Displays |
| AUDIO | |
| 音频芯片 | Realtek Audio Codec |
| Line-in | 1 x Audio Jack for Line-In |
| Line-out | 1 x Audio Jack for Line-Out |
| MIC-in | 1 x Audio Jack for MIC-In |
| LAN | |
| 网口 |
1 x RJ45 for Intel® I219-LM GbE 1 x RJ45 for Realtek® RTL8153 GbE 1 x RJ45 for Intel® I226-V 2.5GbE vPro / iAMT Supported |
| USB PORT | |
| USB |
6 x USB 3.2 Gen 2x1 (10Gbps, Formerly USB 3.1 Gen 2) Internal Header for 1 x USB 3.2 Internal Header for 9 x USB 2.0 Internal USB Type A (Vertical) for 2 x USB 2.0 |
| SERIAL PORT | |
| COM |
1 x DB-9 for RS-232/422/485 Internal Header for 5 x RS-232 |
| INTERNAL I/O | |
| GPIO | 8-Bit |
| SMBUS | Yes |
| ADDITIONAL |
1 x PS/2 1 x Chassis Intrusion 1 x Audio Header 1 x AT Mode Selection |
| STORAGE | |
| SATA | 3 x SATA III |
| RAID | RAID 0, 1, 5, 10 |
| EXPANSION | |
| 扩展插槽 |
1 x PCIe Gen 5 x16 1 x PCIe Gen 4 x4 2 x PCIe Gen 3 x4 |
| M.2 |
1 x M-Key 2242/2260/2280/22110 (SATA/PCIe 4.0 x4) Support NVMe 1 x E-Key 2230 (USB 2.0/PCIe Gen 4 x1) Support CNVio |
| ENVIRONMENT & CERTIFICATION | |
| 冲击 | 15G, 11ms duration |
| 振动 | 1 Grms/ 5~ 500Hz/ Operation |
| 工作温度 | 0°C ~ 60°C (32°F ~ 140°F) |
| 存储温度 | -20°C ~ 85°C (-4°F ~ 185°F) |
| 相对湿度 | 10 ~ 90% Relative Humidity, Non-condensing |
| CERTIFICATION |
CE/FCC Class A LVD |
| ESG DECLARATION | EU RoHS, China RoHS, REACH |
