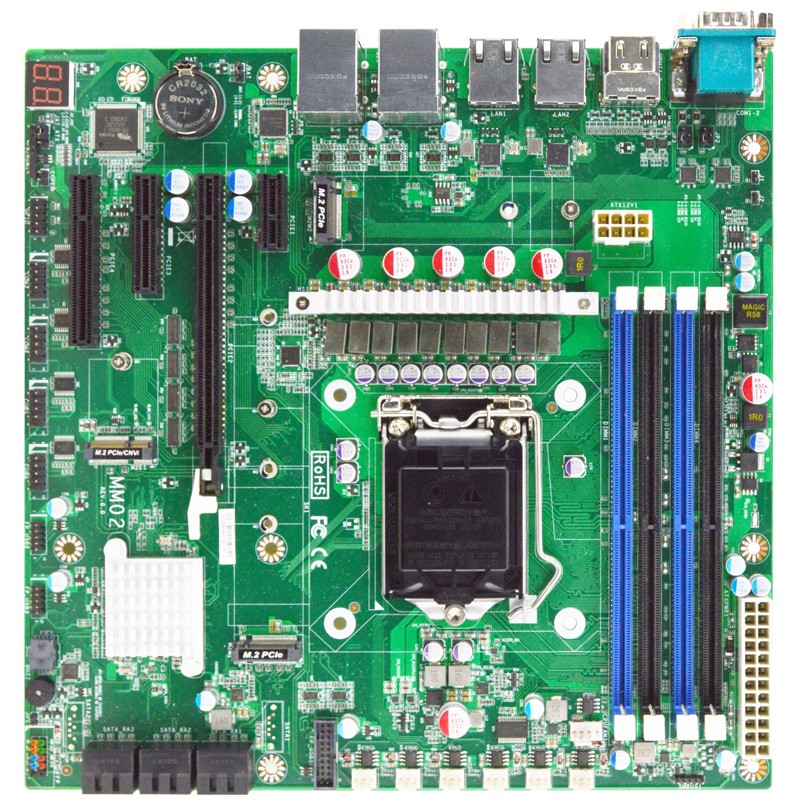

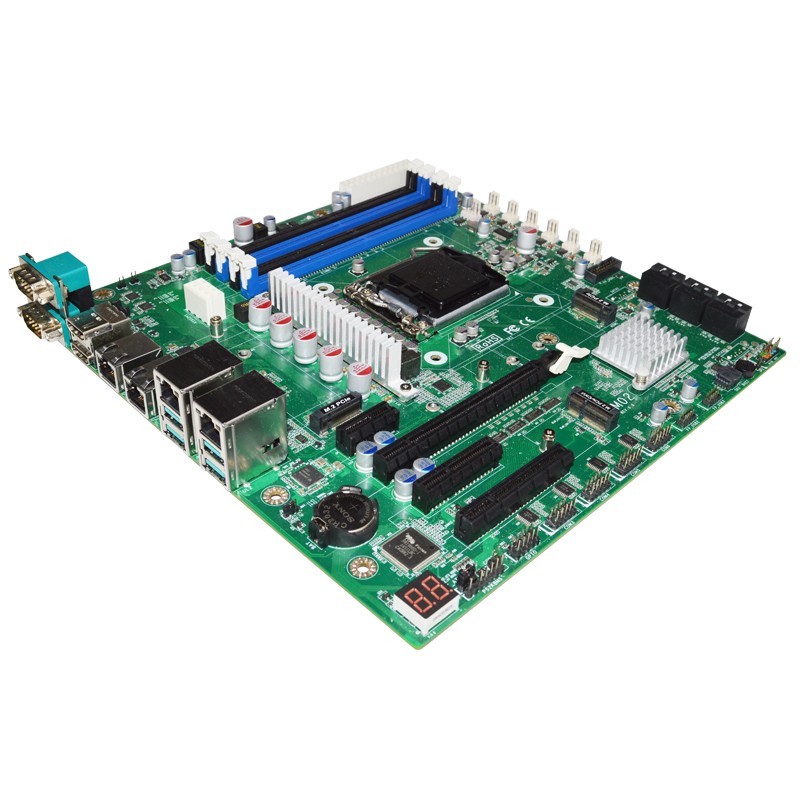

Q470芯片组嵌入式Micro-ATX工控主板IMB-Q470JT
1、采用Intel® LGA1200 第 10/11 代插槽处理器（原 Comet Lake-S，TDP 95W） 2、多功能存储选项：6 x SATA III（6Gb/s），附 RAID 0/1/5/10,2 x M.2 M-Key 3、强大的网络：2 x GbE 和 2 x 2.5GbE 4、全面的I/O：6个 COM接口、4个USB 3.2 Gen.2、2个USB 3.2 Gen.1、4个USB 2.0 5、灵活扩充：1 x PCIe x16、1 x PCIe x8、1 x PCIe x4、1 x PCIe x1、1 x M.2 E-Key（2230） 6、增强的安全性：支持可选的 TPM 2.0
2、多功能存储选项：6 x SATA III（6Gb/s），附 RAID 0/1/5/10,2 x M.2 M-Key
3、强大的网络：2 x GbE 和 2 x 2.5GbE
4、全面的I/O：6个 COM接口、4个USB 3.2 Gen.2、2个USB 3.2 Gen.1、4个USB 2.0
5、灵活扩充：1 x PCIe x16、1 x PCIe x8、1 x PCIe x4、1 x PCIe x1、1 x M.2 E-Key（2230）
6、增强的安全性：支持可选的 TPM 2.0
| SYSTEM | |
| 版型 | Micro-ATX |
| 处理器 | Intel® LGA1200 10/11th Gen Socket Processor (Formerly Comet Lake-S, TDP 95W) |
| 芯片组 | Intel® Q470E |
| 内存 | 4 x DDR4 3200/2933/2666/2400MHz LONG DIMM, up to 128GB |
| BIOS | AMI Flash ROM |
| 看门狗 | 255 Levels |
| SECURITY | TPM2.0 (Optional) |
| 尺寸 (W X D) | 244.0 (W) x 244.0(D) mm (9.6" x 9.6") |
| 支持系统 |
Windows® 11 (64bit) Windows® 10 (64bit) Linux |
| POWER | |
| POWER REQUIREMENT | ATX Power Supply |
| POWER ON MODE | AT / ATX |
| CONNECTOR | 24+8-pin ATX PWR |
| DISPLAY | |
| GPU | Intel® HD Graphics |
| HDMI | 2 x HDMI 1.4 (Max Resolution: 4096 x 2160@30Hz) |
| LAN | |
| ETHERNET |
1 x RJ45 for Intel® I219-LM GbE 1 x RJ45 for Intel® I210-AT GbE 2 x RJ45 for Intel® I226-V 2.5GbE |
| USB PORT | |
| USB |
4 x USB 3.2 Gen 2x1 (10Gbps, Formerly USB 3.1 Gen 2) Internal Header for 2 x USB 3.2 Internal Header for 4 x USB 2.0 |
| SERIAL PORT | |
| COM |
2 x DB-9 for RS-232/422/485 Internal Header for 4 x RS-232 |
| INTERNAL I/O | |
| GPIO | 8-Bit |
| SMBUS | Yes |
| ADDITIONAL |
1 x Chassis Intrusion 1 x AT Mode Selection |
| STORAGE | |
| SATA |
6 x SATA III 1 x SATA Power Connector |
| RAID | RAID 0, 1, 5, 10 |
| EXPANSION | |
| M.2 |
1 x M-Key 2242/2260/2280/22110 (PCIe x4 interface) support NVMe 1 x M-Key 2260/2280 (PCIe x2 interface) 1 x E-Key 2230 (USB 2.0/PCIe) Support CNVi |
| 扩展槽 |
1 x PCIe x16 1 x PCIe x8 (share with PCIe x16) 1 x PCIe x4 1 x PCIe x1 |
| ENVIRONMENT & CERTIFICATION | |
| SHOCK | 15G, 11ms duration |
| VIBRATION | 1 Grms/ 5~ 500Hz/ Operation |
| OPERATING TEMPERATURE | 0°C ~ 60°C (32°F ~ 140°F) |
| STORAGE TEMPERATURE | -20°C ~ 85°C (-4°F ~ 185°F) |
| OPERATING HUMIDITY | 10 ~ 90% Relative Humidity, Non-condensing |
| CERTIFICATION | CE/FCC Class A |
| ESG DECLARATION |
EU RoHS China RoHS REACH |
