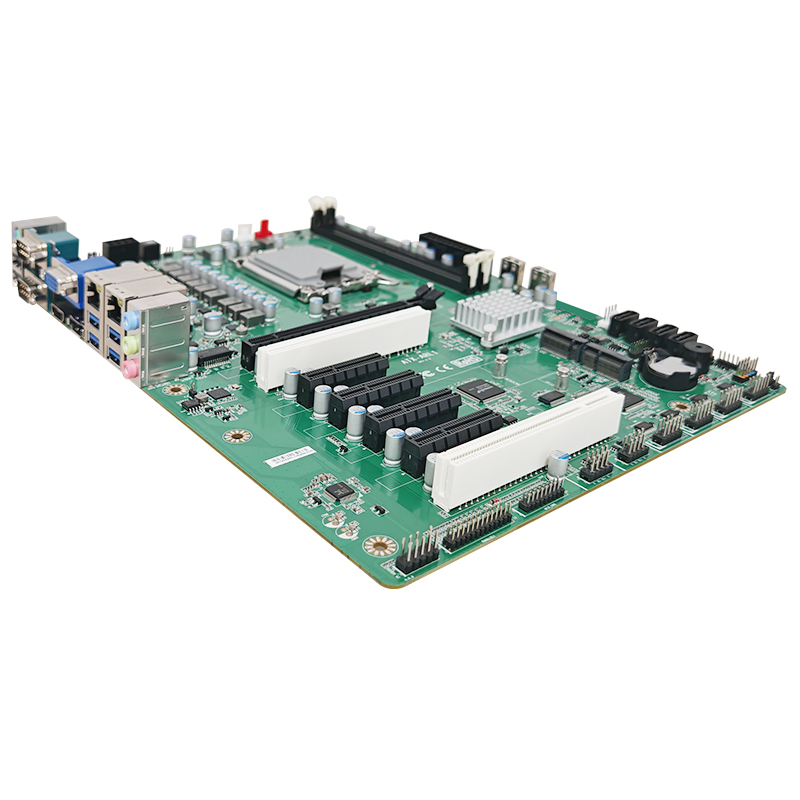

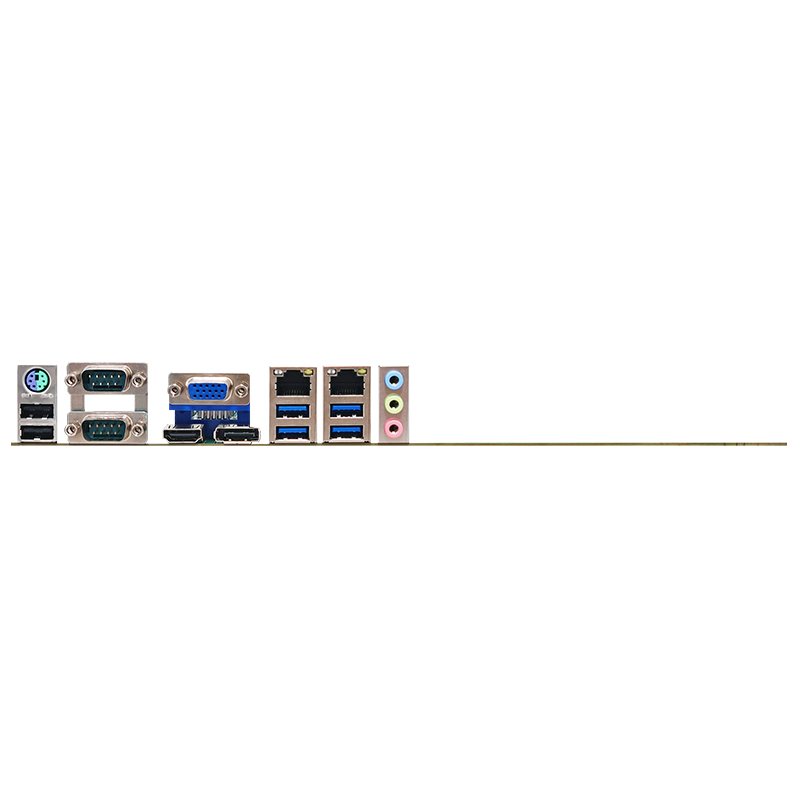

H810芯片组ATX嵌入式工控主板IAMB-H810JT
1、搭载Intel® Core™ Ultra处理器（Arrow Lake-S），搭配H810芯片组 2、2条DDR5 6400MT/s UDIMM内存，最高支持96GB 3、1个VGA，1个HDMI®，1个DP 4、1个2.5GbE网口，1个GbE网口 5、6个COM，4个USB 3.2（Gen.1），6个USB 2.0，2个垂直USB 2.0 Type-A 6、1个M.2 M-key, 2242/2280 (SATA界面)，1个M.2 E-key, 2230 (CNVi/USB2.0界面) 7、1 x PCIe x16 (Gen4), 1 x PCIe x4 (Gen4), 3 x PCIe x1 (Gen4), 2 x PCI
2、2条DDR5 6400MT/s UDIMM内存，最高支持96GB
3、1个VGA，1个HDMI®，1个DP
4、1个2.5GbE网口，1个GbE网口
5、6个COM，4个USB 3.2（Gen.1），6个USB 2.0，2个垂直USB 2.0 Type-A
6、1个M.2 M-key, 2242/2280 (SATA界面)，1个M.2 E-key, 2230 (CNVi/USB2.0界面)
7、1 x PCIe x16 (Gen4), 1 x PCIe x4 (Gen4), 3 x PCIe x1 (Gen4), 2 x PCI
| SYSTEM | |
| 版型 | ATX |
| 处理器 | Intel® LGA1851 Socket Ultra 9/7/5th Gen Processor (Max. TDP 125W) |
| 芯片组 | Intel® Arrow lake-S H810 Chip |
| 内存 | 2 x DDR5 6400MT/s, Dual Channel U-DIMM, up to 96GB |
| BIOS | AMI Flash ROM |
| 网络唤醒 | Yes |
| 看门狗 | 255 Levels |
| SECURITY | Intel® PTT (Integrated fTPM) & TPM 2.0 (dTPM) |
| RTC BATTERY | Lithium Battery |

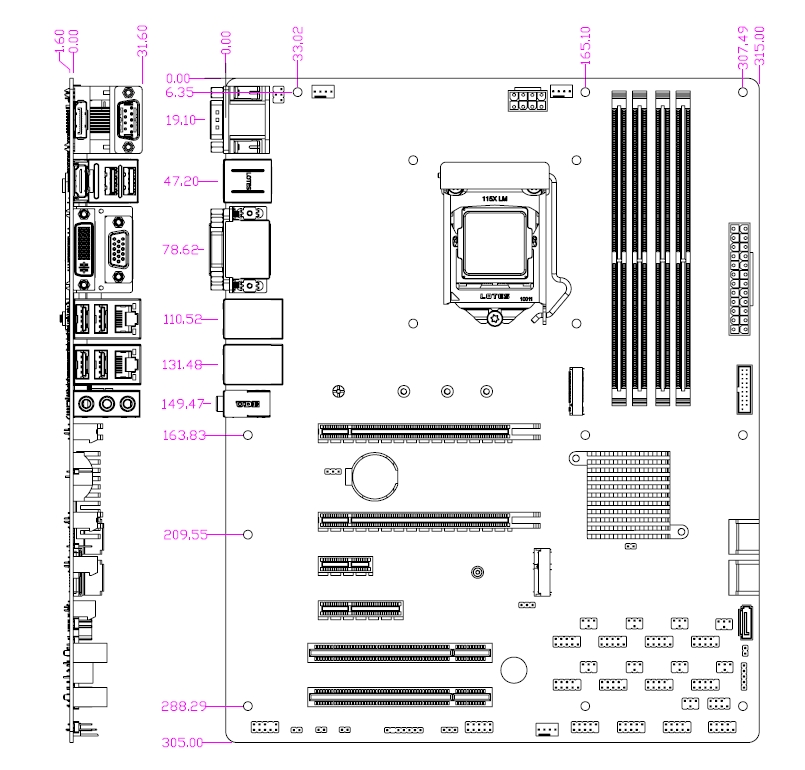

| 尺寸 (W X D) | 305.0 (W) x 220.0 (D) mm (12" x 8.7") |
| 支持 | Windows® 11 (64bit), Windows® 10 (64bit), Linux |
| POWER | |
| 电源 | ATX Power Supply |
| 电源模式 | AT / ATX (Default) Mode |
| CONNECTOR | 24+8-pin ATX PWR |
| DISPLAY | |
| 显示 | Intel® HD Graphics |
| DP | 1 x DP2.1 (Max Resolution:7680 x 4320@60Hz) |
| HDMI® | 1 x HDMI® 2.0 (Max Resolution: 4096 x 2304@60Hz) |
| VGA | 1 x VGA (Max Resolution: 1920 x 1080 @60Hz) |
| 多显 | Support 3 Displays |
| AUDIO | |
| 音频 | Realtek ALC897 |
| Line-in | 1 x Audio Jack for Line-In |
| Line-out | 1 x Audio Jack for Line-Out |
| MIC-in | 1 x Audio Jack for MIC-In |
| LAN | |
| ETHERNET |
1 x RJ45 for Intel® I226-V 2.5GbE 1 x RJ45 for Intel® I219-V GbE |
| USB PORT | |
| USB |
4 x USB 3.2 Gen 1 2 x USB 2.0 Internal Header for 4 x USB 2.0 Internal USB Type A (Vertical) for 2 x USB 2.0 |
| SERIAL PORT | |
| COM |
Internal Header for 4 x RS-232 2 x DB-9 for RS-232/422/485 |
| INTERNAL I/O | |
| GPIO | 16 bit GPIO (5V) co-layout LPT |
| SMBUS | Yes |
| FAN |
1 x CPU Fan Header 2 x System Fan Header |
| FRONT PANEL | HDD Active LED, Power LED, Power On/Off, Reset |
| ADDITIONAL |
1 x Chassis intrusion 1 x AT/ATX Mode Selection 1 x Case Open 1 x eDP (Optional) |
| STORAGE | |
| SATA | 4 x SATA III |
| EXPANSION | |
| 扩展插槽 |
1 x PCIe x16 (Gen 4) 4 × PCIe Gen4 slots (PCIe2/PCIe3: x1, PCIe4: x4) or (PCIe2/PCIe3/PCIe5: x1, PCIe4: x2 2 x PCI |
| M.2 |
1 x M-key 2242/2280 (SATA interface, co-layout SATA4) 1 x E-Key 2230 (USB2.0 + CNVi interface) |
| OTHERs | |
| OTHER | 1 x PS/2 |
| ENVIRONMENT & CERTIFICATION | |
| OPERATING TEMPERATURE | 0°C ~ 60°C (32°F ~ 140°F) |
| STORAGE TEMPERATURE | -20°C ~ 70°C (-4°F ~ 158°F) |
| OPERATING HUMIDITY | 10 ~ 90% @ 40°C, Non-condensing |
| CERTIFICATION |
CE/FCC Class A LVD |
| ESG DECLARATION | EU RoHS, China RoHS, REACH (Option) |
